2403336 | Phoenix Contact
Switchgear combination, 1000 VDC to connect 3x 1 string, (H x W x D) 180 x 254 x 111 mm, IP65, PC, gray, 2403336
Unit Price (€ / pc.)
464.1952 € *
Available in 10 days: 49 pcs. - if ordered today

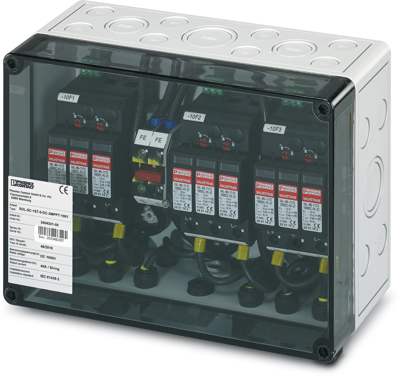

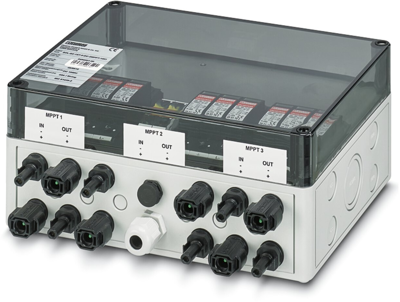

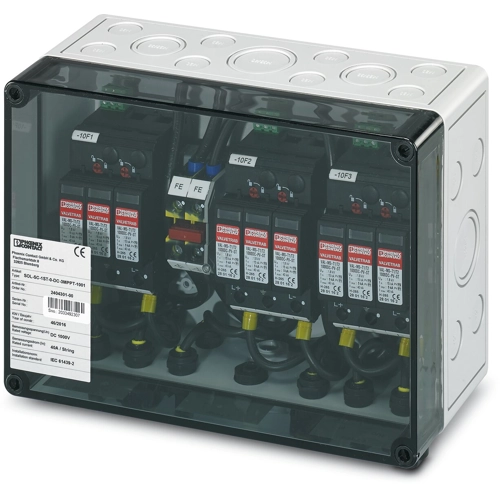

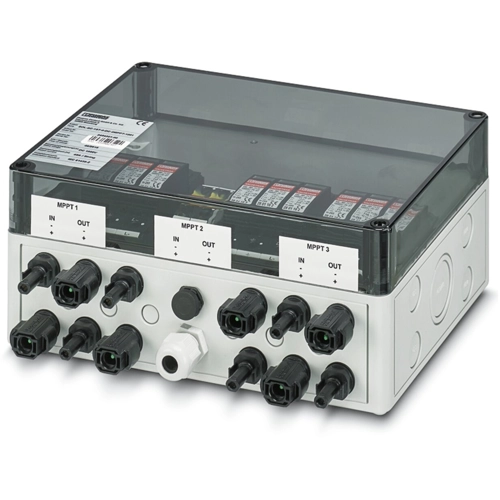

String combiner box, 2403336, Phoenix Contact
String combiner box for photovoltaic systems up to 1000 V DC for connecting 3x 1 string. With surge protection (type 2) and SUNCLIX DC connectors for the input and output side (SUNCLIX mating connectors supplied as standard).
Features
- Fast installation and startup
- Standard-compliant switchgear and controlgear assembly, thanks to use of DIN EN 61439
- Large portfolio of string combiner boxes in stock
- Application-oriented consultation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | switchgear combination | |
| Version | 1000 VDC to connect 3x 1 string | |

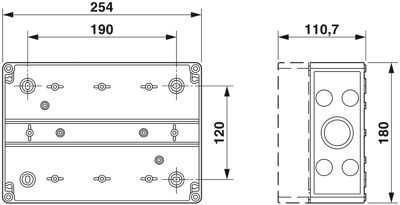

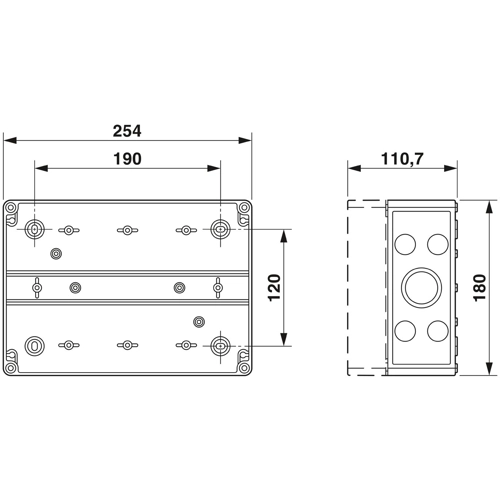

| Height | 180 mm | |
| Width | 254 mm | |
| Depth | 111 mm | |
| Material | PC | |
| Colour | gray | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363030 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
