2403334 | Phoenix Contact
Switchgear combination, 1000 VDC for connection of 1x 4 strings, (H x W x D) 180 x 180 x 111 mm, IP65, polycarbonate, gray, 2403334
Order No.: 65P0614
EAN: 4055626369082
MPN:
2403334
SOL-SC-4ST-0-DC-1MPPT-2000
Unit Price (€ / pc.)
196.2667 € *
Available: 0 pcs.
Leadtime: 21 Weeks **

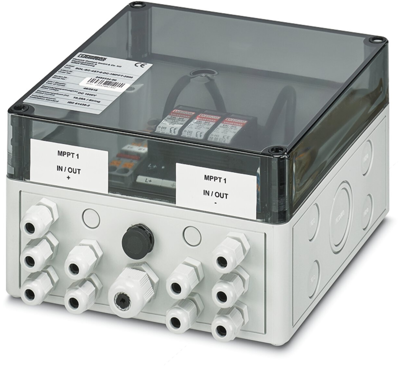

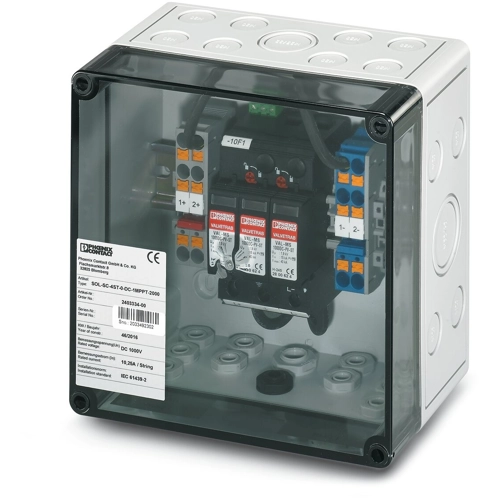

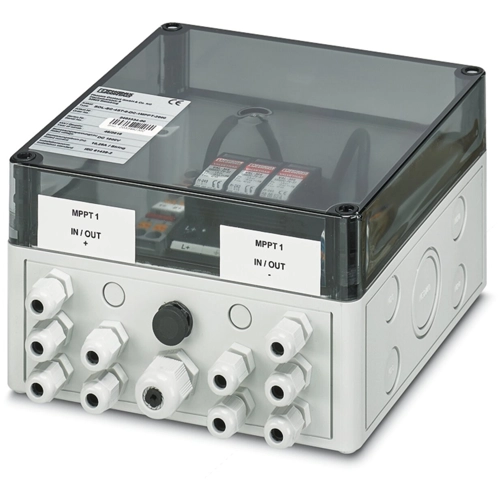

String combiner box, 2403334, Phoenix Contact
String combiner box for photovoltaic systems up to 1000 V DC for connecting 1x 4 strings. With surge protection (type 2) and cable glands for the input and output side.
Features
- Fast installation and startup
- Standard-compliant switchgear and controlgear assembly, thanks to use of DIN EN 61439
- Large portfolio of string combiner boxes in stock
- Application-oriented consultation
Technical specifications

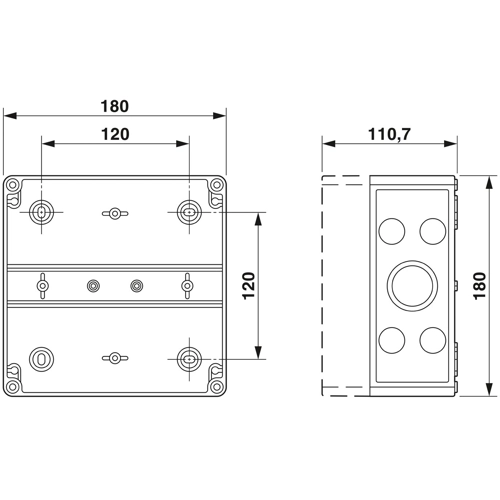

| Version | switchgear combination, 1000 VDC for connection of 1x 4 strings | |
| Width | 180 mm | |
| Colour | gray | |
| Height | 180 mm | |
| Material | polycarbonate | |
| Degree of protection (IP) | IP65 | |
| Depth | 111 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85234910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
