2316417 | Phoenix Contact

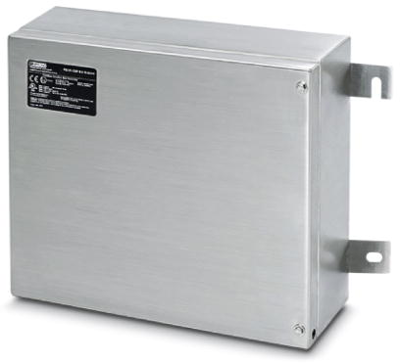

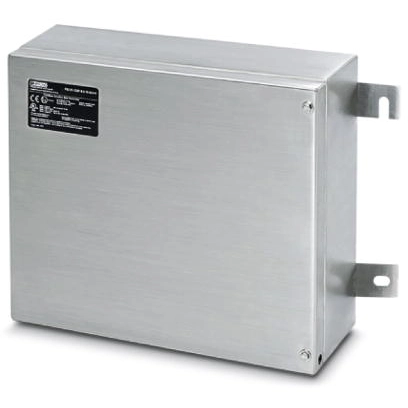

Terminal box, (H x W x D) 304.8 x 355.6 x 127 mm, IP66, stainless steel, gray, 2316417
Active
Total price
(
1,744.8732 €
* / pcs.)
1,744.87 €
Currently not in stock, we will order for you
Please send price/quantity requests to info@buerklin.com
Description
Product by Phoenix Contact at Bürklin Elektronik
Junction box, 2316417, Phoenix Contact
Stainless steel field junction box with 16 ports for use in hazardous locations. Includes 12-spur block device coupler (FB-12SP) for Foundation Fieldbus or PROFIBUS PA, three terminal blocks for trunk cable connection (+, –, S).
Features
- Single-sided plug configuration eliminates cable bend radius issues
- Provides current limiting short-circuit protection per spur
- Terminator preinstalled
Technical specifications
| Version | terminal box | |
| Width | 355.6 mm | |
| Colour | gray | |
| Height | 304.8 mm | |
| Material | stainless steel | |
| Degree of protection (IP) | IP66 | |
| Depth | 127 mm |
Logistics
| Country of origin | US |
| Customs tariff number | 85371098 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
Download
Variations
Order No.:
64P6660
Manufacturer:
Phoenix Contact
Manufacturer SKU
2316417
1 pcs.
1,744.8732 €
stainless steel
127 mm
terminal box
355.6 mm
304.8 mm
gray
IP66
Order No.:
64P6659
Manufacturer:
Phoenix Contact
Manufacturer SKU
2316433
1 pcs.
1,750.0497 €
stainless steel
127 mm
terminal box
355.6 mm
304.8 mm
gray
IP66
