1212158 | Phoenix Contact
Stripping pliers, 1.5-6.0 mm², AWG 16-10, cable Ø 1.5-2.9 mm, L 191 mm, 136 g, 1212158
Unit Price (€ / pc.)
82.8835 € *
Available in 5 Days: 67 pcs. - if ordered today

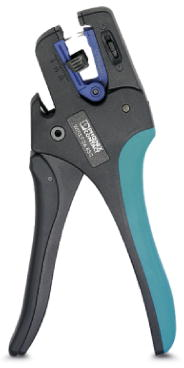

Stripping tool, 1212158, Phoenix Contact
Stripping tool for cables and conductors (especially for cables protected against short circuits and ground leakages) 1.5 - 6 mm², self-adjusting, stripping length of up to 18 mm, cutting capacity of up to 10 mm² stranded/1.5 mm² solid, Replaceable stripping blade.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| 1000V Insulated | No | |
| Weight | 136 g | |
| Cable cross-section | 1.5-6.0 mm² | |
| Stripping Length | 18 mm | |
| Length | 191 mm | |
| Cable Diameter | 1.5-2.9 mm | |
| Product type | stripping pliers | |
| AWG cross-section | AWG 16-10 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
| Country of origin | SE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | not_relevant |
| SVHC free | Yes |
