2964364 | Phoenix Contact

Solid state relay, 19.2-28.8 VDC, 4-18 VDC, 50 mA, DIN rail, 2964364

Order No.: 64P2000
EAN: 4017918107437
MPN:
2964364
DEK-OE- 24DC/ 5DC/100KHZ-G
Series: DEK

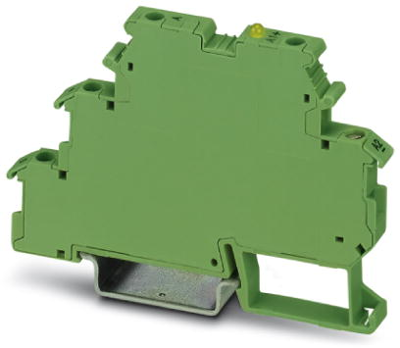

2964364 Phoenix Contact Solid State Relays
Image may differ
Unit Price (€ / pc.)
77.4809 € *
Available in 10 days: 288 pcs. - if ordered today
Total Price:
77.48 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
77.4809 €

Solid-state relay, 2964364, Phoenix Contact

Input solid-state relay with DC voltage output push-pull, light indicator and protective circuit in input and output circuits, transmission frequency: 100 kHz, Input: 24 V DC, Output: 4 - 18 V DC/50 mA

Features

  • With capacitor on the input side for interference suppression
  • Limit frequency of up to 100 kHz
  • Push-pull stage on output side
Technical specifications
Control Voltage 19.2-28.8 VDC
LED display Yes
Voltage 4-18 VDC
Assembly DIN rail
Rated current 50 mA
Logistics
Customs tariff number 85364190
Country of origin CN
Compliance
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
