2964270 | Phoenix Contact
Solid state relay, 4-6 VDC, 4-30 VDC, 50 mA, DIN rail, 2964270
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
55.2993 € *
Available: 5 pcs.
Available in 5 Days: 841 pcs. - if ordered today

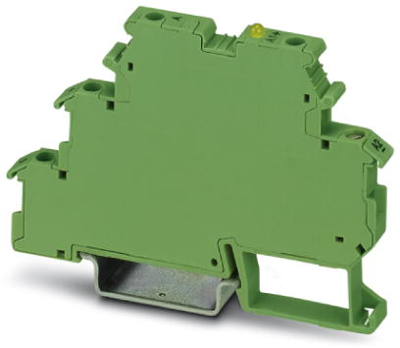

Solid-state relay, 2964270, Phoenix Contact
Input solid-state relay, transmission frequency: 100 kHz, with LED and protective circuit in input and output circuits, Input: 5 V DC, Output: 4 - 30 V DC/50 mA
Features
- With capacitor on the input side for interference suppression
- Limit frequency of up to 100 kHz
- Push-pull stage on output side
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 50 mA | |
| Voltage | 4-30 VDC | |
| Control Voltage | 4-6 VDC | |
| Assembly | DIN rail | |
| LED display | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364190 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
