Resistance/potentiometer transducer, 2902017
Unit Price (€ / pc.)
285.9332 € *
Standard delivery time from the manufacturer is: 2 Weeks

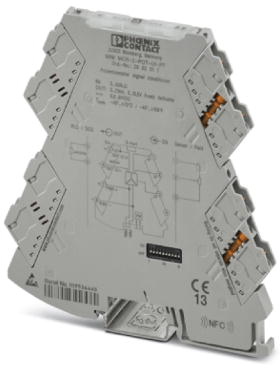

Resistance/potiposition transducer, 2902017, Phoenix Contact
Configurable potiposition transducer with plug-in connection technology for connecting potentiometers from 0-100 Ω to 0-100 kΩ. Configurable via DIP switch or software. Push-in connection technology, standard configuration.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | resistance/potentiometer transducer | |
| Version | with pluggable connection technology | |
| measurement range | input 0-100 Ω to 0-100 kΩ | |
| Signal output | 1 x analog | |
| Length | 119.2 mm | |
| Width | 6.2 mm | |
| Height | 109.81 mm | |
| Weight | 108.9 g |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
