2864273 | Phoenix Contact
Resistance thermometer transducer, 2864273
Unit Price (€ / pc.)
264.6441 € *
Available in 5 Days: 491 pcs. - if ordered today

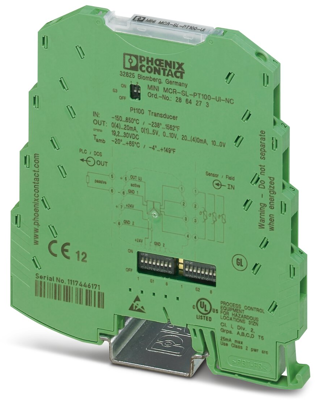

Resistance thermometer measuring transducer, 2864273, Phoenix Contact
MCR temperature transducer for Pt 100 temperature sensors, configured via DIP switch, with screw connection, not pre-configured.
Features
- Power supply possible via the foot element (TBUS)
- For 2-, 3-, 4-conductor Pt 100 sensors in accordance with IEC 60751
- Error indication via diagnostic LED and analog signal
- Input and output signals can be configured via DIP switches
- Highly-compact temperature transducer for electrical isolation, conversion, amplification, and filtering of
- 3-way isolation
- Pt 100 signals to create standard signals
- Temperature measuring range of -150°C to +850°C
Technical specifications
| Filter | Property | Value |
|---|---|---|

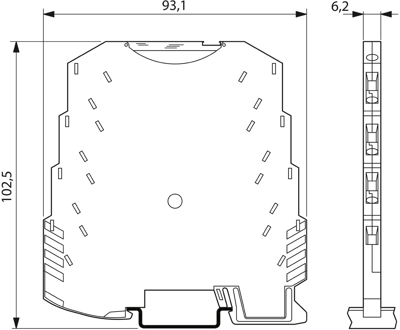

| Length | 101.2 mm | |
| Product type | resistance thermometer transducer | |
| Height | 93.1 mm | |
| Width | 6.2 mm | |
| Weight | 99.2 g | |
| Version | with screw connection | |
| Signal output | 1 x analog |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
