Universal current transducer, 2308085
Unit Price (€ / pc.)
421.617 € *
Available in 5 Days: 133 pcs. - if ordered today

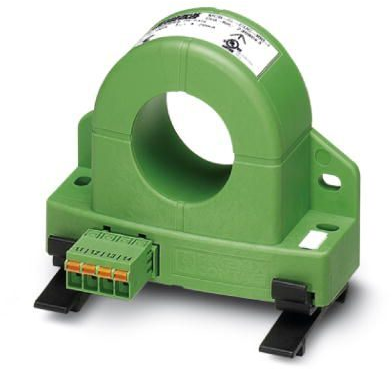

Universal current transmitter, 2308085, Phoenix Contact
Universal current transmitter, for measurement of DC, AC and distorted currents, input current 0 ... 500 A, output 4 ... 20 mA
Features
- Variable mountable on mounting rail and mounting plate
- Compact dimensions also allow decentralized use
- Simple connection technology with pluggable COMBICON connection terminals
- 3-way isolation
- Universal current measurement, no shunt required

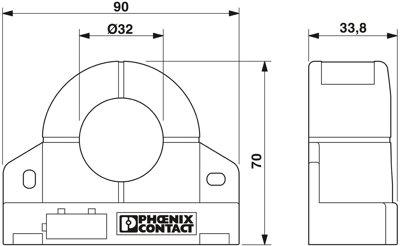

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 33.8 mm | |
| Version | for measuring direct/alternating/distorted currents | |
| Weight | 286.5 g | |
| measurement range | input 0-500 A, output 4-20 mA | |
| Width | 90 mm | |
| Length | 85 mm | |
| Product type | universal current transducer |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303370 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
