2308072 | Phoenix Contact
Universal current transducer, 2308072
Unit Price (€ / pc.)
421.617 € *
Standard delivery time from the manufacturer is: 4 Weeks

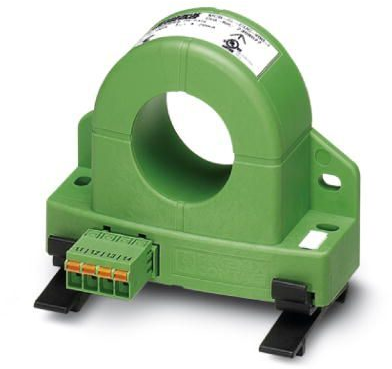

Universal current transducer, 2308072, Phoenix Contact
Universal current transducer, for measuring DC, AC and distorted currents, input current 0 ... 400 A, output 4 ... 20 mA
Features
- Variable mounting on mounting rail and mounting plate
- Simple connection technology due to pluggable COMBICON connection terminals
- Compact dimensions also enable decentralized use
- Universal current measurement, no shunt required
- 3-way isolation

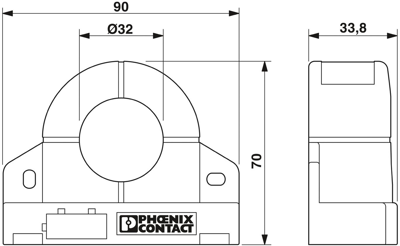

Technical specifications
| measurement range | input 0-400 A, output 4-20 mA | |
| Height | 33.8 mm | |
| Product type | universal current transducer | |
| Version | for measuring direct/alternating/distorted currents | |
| Width | 90 mm | |
| Length | 85 mm | |
| Weight | 289 g |
Download
Logistics
| Customs tariff number | 90303370 |
| Country of origin | CN |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
