3273300 | Phoenix Contact

Distribution block, push-in connection, 0.14-4.0 mm², 12 pole, 24 A, 6 kV, black, 3273300

Order No.: 60P2759
EAN: 4055626392165
MPN:
3273300
PTFIX 12X2,5 BK
Series: PTFIX
3273300 Phoenix Contact Series Terminals

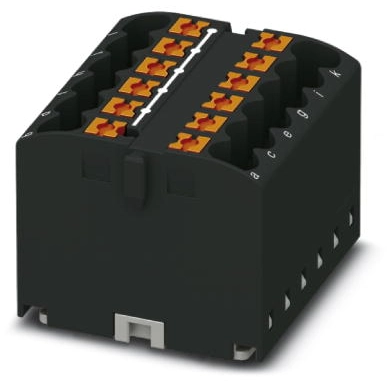

Image may differ
Unit Price (€ / pc.)
8.0563 € *
Available in 10 days: 328 pcs. - if ordered today
Total Price:
8.06 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0563 €
10 pcs.
7.2471 €
100 pcs.
6.1761 €
*incl. VAT plus shipping costs
Subject to prior sale

Distribution block, 3273300, Phoenix Contact

Distribution block, Basic terminal block, The blocks can be bridged with one another via the conductor shaft. For corresponding plug-in bridges, see accessories, nom. voltage: 450 V, nominal current: 24 A, connection method: Push-in connection, number of connections: 12, cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, width: 31.5 mm, height: 21.7 mm, color: black, mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging

Features

  • Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
  • Clear wiring, thanks to eleven different color variants
  • Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
  • Time savings of up to 80%, thanks to ready-to-mount blocks without manual bridging
  • Space savings of up to 50% on the DIN rail, thanks to transverse mounting
Technical specifications
Version distribution block
Number of terminals 2
Pin number 12 pole
Cable cross-section 0.14-4.0 mm²
AWG cross-section AWG 26 to 12
Rated surge voltage 6 kV
Rated current 24 A
Rated Voltage 500 V
Degree of soiling 3
Length 28.6 mm
Width 31.45 mm
Height 21.7 mm
Connection push-in connection
Colour black
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
