3270230 | Phoenix Contact
Shunting distributor, push-in connection, 0.14-2.5 mm², 2 pole, 8 A, 4 kV, gray, 3270230
Unit Price (€ / pc.)
17.731 € *
Standard delivery time from the manufacturer is: 2 Weeks

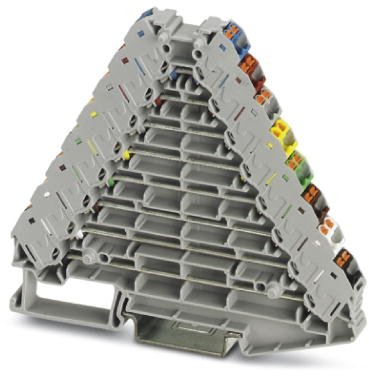

Marshalling panel, 3270230, Phoenix Contact
Marshalling panel, rated voltage: 250 V, nominal current: 8 A, connection method: Push-in connection, 1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level, Rated cross section: 1.5 mm², cross section: 0.14 mm² - 2.5 mm², mounting: NS 35/7,5, NS 35/15, color: gray.
Features
- High contact quality thanks to push-in technology as a replacement for Wire-Wrap, TERMI-POINT
- Individual color assignment of cable and terminal point to ensure error-free, safe operation
- Tool-free wiring in a confined space thanks to compact size
- The 2.3 mm test connection enables testing between the conductors with test pins commonly used in the industry
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 8.3 mm | |
| Length | 100 mm | |
| Pin number | 2 pole | |
| Version | shunting distributor | |
| Cable cross-section | 0.14-2.5 mm² | |
| Height | 87.5 mm | |
| Colour | gray | |
| Rated surge voltage | 4 kV | |
| Rated current | 8 A | |
| AWG cross-section | AWG 26 to 14 | |
| Connection | push-in connection | |
| Rated Voltage | 250 V | |
| Degree of soiling | 3 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
