3249001 | Phoenix Contact
1 wire mini through terminal, push-in connection, 0.2-6.0 mm², 1 pole, 32 A, 6 kV, blue, 3249001
Unit Price (€ / pc.)
1.428 € *
Standard delivery time from the manufacturer is: 5 Weeks

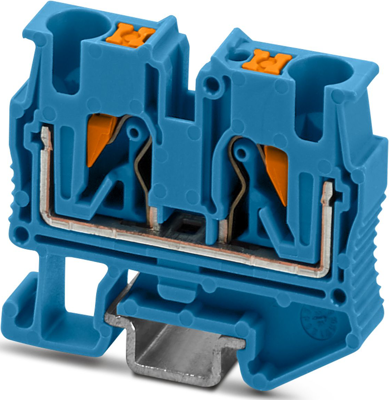

Mini terminal block, 3249001, Phoenix Contact
Mini feed-through terminal block, nominal voltage: 500 V, nominal current: 32 A, number of positions: 1, connection method: Push-in connection, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: NS 15, color: blue.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 500 V | |
| Version | mini feed through terminal block | |
| Rated current | 32 A | |
| Rated surge voltage | 6 kV | |
| Colour | blue | |
| Connection | push-in connection | |
| Degree of soiling | 3 | |
| Pin number | 1 pole | |
| Cable cross-section | 0.2-6.0 mm² | |
| Length | 38 mm | |
| AWG cross-section | AWG 24 to 10 | |
| Height | 32.8 mm | |
| Width | 6.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
