3249000 | Phoenix Contact

1 wire mini through terminal, push-in connection, 0.2-6.0 mm², 1 pole, 32 A, 6 kV, gray, 3249000

Order No.: 64P2400
EAN: 4055626678481
MPN:
3249000
MPT 4
Series: MPT
3249000 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
1.428 € *
Available in 10 days: 20 pcs. - if ordered today
Total Price:
1.43 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.428 €

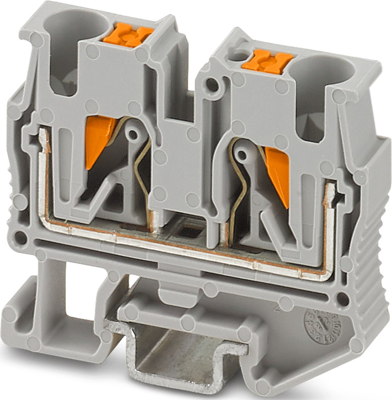

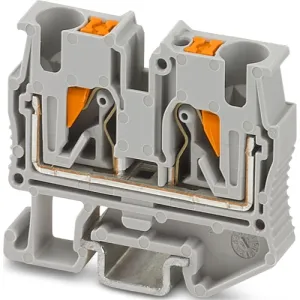

Mini terminal block, 3249000, Phoenix Contact

Mini feed-through terminal block, nominal voltage: 500 V, nominal current: 32 A, number of positions: 1, connection method: Push-in connection, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: NS 15, color: gray.

Technical specifications
Filter Property Value
Pin number 1 pole
Degree of soiling 3
Colour gray
Version mini feed through terminal block
Rated surge voltage 6 kV
Length 38 mm
Connection push-in connection
Rated Voltage 500 V
Cable cross-section 0.2-6.0 mm²
Rated current 32 A
Height 32.6 mm
AWG cross-section AWG 24 to 10
Width 6.2 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
