3248110 | Phoenix Contact
Protective conductor terminal, push-in connection, 0.14-1.5 mm², 2 pole, 6 kV, yellow/green, 3248110
Unit Price (€ / pc.)
2.4990 € *
Available in 10 days: 6,148 pcs. - if ordered today
Total Price:
2.50 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4990 €
10 pcs.
2.2967 €
50 pcs.
2.0944 €
100 pcs.
1.8802 €
*incl. VAT plus shipping costs
Subject to prior sale

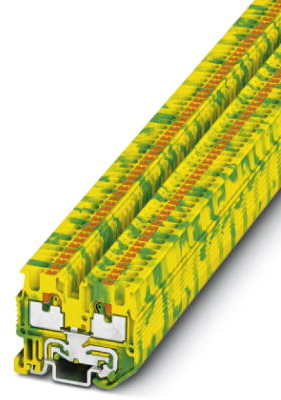

Mini ground terminal block, 3248110, Phoenix Contact
Mini ground terminal block, number of connections: 2, connection method: Push-in connection, 1 level, cross section: 0.14 mm² - 1.5 mm², mounting type: NS 15, color: green-yellow.
Features
- Space saving thanks to compact design and mounting option on a 15 mm DIN rail
- Clear arrangement thanks to marking of all terminal points
- Tested for railway applications
Technical specifications
| Height | 28.1 mm | |
| Degree of soiling | 3 | |
| Number of terminals | 2 | |
| Length | 33.55 mm | |
| Pin number | 2 pole | |
| Connection | push-in connection | |
| Colour | yellow/green | |
| Cable cross-section | 0.14-1.5 mm² | |
| Width | 3.5 mm | |
| Version | protective conductor terminal | |
| Rated surge voltage | 6 kV | |
| AWG cross-section | AWG 26 to 14 |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
