3247065 | Phoenix Contact

High current terminal, screw connection, 35-150 mm², 1 pole, 309 A, 8 kV, blue, 3247065

Order No.: 60P5332
EAN: 4046356733335
MPN:
3247065
UKH 150-F BU
Series: UKH

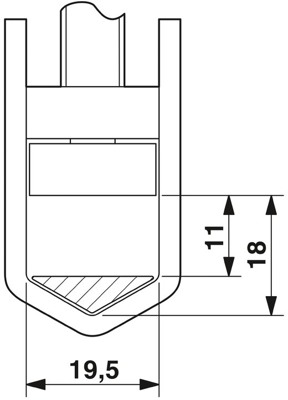

3247065 Phoenix Contact Series Terminals Image 1

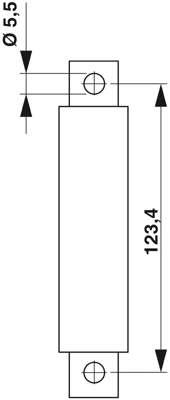

3247065 Phoenix Contact Series Terminals Image 2

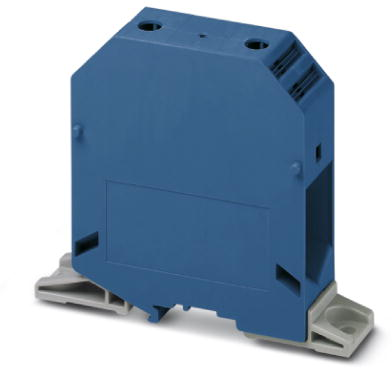

3247065 Phoenix Contact Series Terminals Image 3
Image may differ
Unit Price (€ / pc.)
32.7964 € *
Available in 10 days: 6 pcs. - if ordered today
Total Price:
32.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
32.7964 €

High current terminal block, 3247065, Phoenix Contact

High-current terminal block, rated voltage: 1000 V, nominal current: 309 A, connection method: Screw connection, Rated cross section: 150 mm², cross section: 35 mm²  - 150 mm², mounting type: direct screw connection, color: blue.

Features

  • Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
  • Low contact resistance of the contact surface due to ribbing
  • Screw locking by means of spring-loaded elements in the clamping part
Technical specifications
Version high current terminal
Number of terminals 2
Pin number 1 pole
Cable cross-section 35-150 mm²
AWG cross-section AWG 2/0
Rated surge voltage 8 kV
Rated current 309 A
Rated Voltage 1000 V
Degree of soiling 3
Length 136.1 mm
Width 31 mm
Height 111 mm
Connection screw connection
Colour blue
Logistics
Customs tariff number 85369010
Country of origin IN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
