3247062 | Phoenix Contact

High current terminal, screw connection, 16-70 mm², 1 pole, 150 A, 8 kV, blue, 3247062

Order No.: 60P5304
EAN: 4046356733304
MPN:
3247062
UKH 50-F BU
Series: UKH

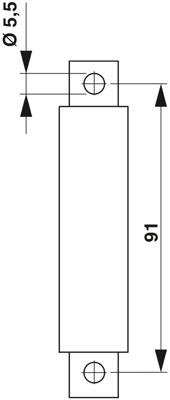

3247062 Phoenix Contact Series Terminals Image 1

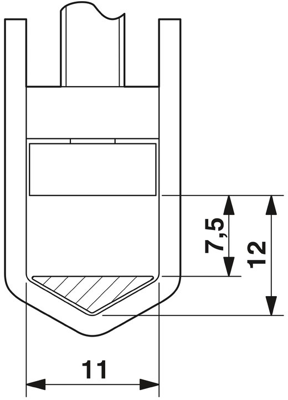

3247062 Phoenix Contact Series Terminals Image 2

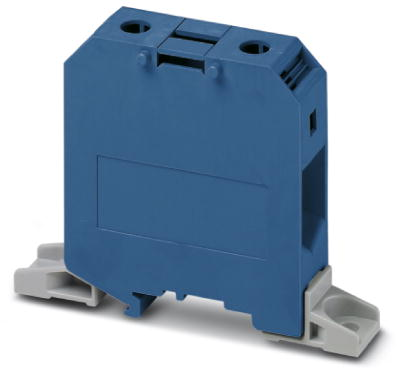

3247062 Phoenix Contact Series Terminals Image 3
Image may differ
Unit Price (€ / pc.)
19.2066 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
19.21 € *
Price list
Quantity
Price per unit*
1 pcs.
19.2066 €
10 pcs.
17.6715 €
50 pcs.
16.0769 €
100 pcs.
14.4704 €
*incl. VAT plus shipping costs
Subject to prior sale

High current terminal block, 3247062, Phoenix Contact

High-current terminal block, rated voltage: 1000 V, nominal current: 150 A, connection method: Screw connection, Rated cross section: 50 mm², cross section: 16 mm²  - 70 mm², mounting type: direct screw connection, color: blue.

Features

  • Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
  • Low contact resistance of the contact surface due to ribbing
  • Screw locking by means of spring-loaded elements in the clamping part
Technical specifications
Filter Property Value
Version high current terminal
Number of terminals 2
Pin number 1 pole
Cable cross-section 16-70 mm²
AWG cross-section AWG 6 to 2/0
Rated surge voltage 8 kV
Rated current 150 A
Rated Voltage 1000 V
Degree of soiling 3
Length 75.5 mm
Width 20 mm
Height 76 mm
Connection screw connection
Colour blue
Logistics
Property Value
Country of origin IN
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
