3245037 | Phoenix Contact
N-disconnect terminal, screw connection, 0.2-10 mm², 41 A, 6 kV, gray, 3245037
Unit Price (€ / pc.)
4.2126 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
4.21 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2126 €
10 pcs.
3.8794 €
50 pcs.
3.5224 €
100 pcs.
3.1654 €
*incl. VAT plus shipping costs
Subject to prior sale

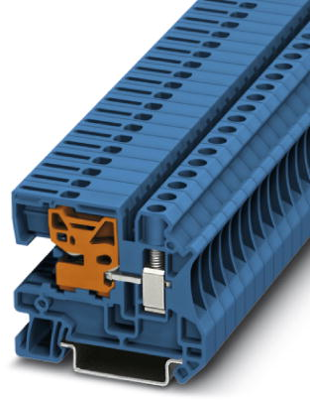

N disconnect terminal block, 3245037, Phoenix Contact
N disconnect terminal block, Assembly instruction: In order to securely fix the neutral busbar in place, support brackets must be placed at the beginning and end of each terminal strip as well as every 20 cm on longer terminal strips. The corresponding support brackets can be found at phoenixcontact.net/products, for neutral conductor disconnection, rated voltage: 400 V, nominal current: 41 A, Screw connection, Rated cross section: 6 mm², cross section: 0.2 mm² - 10 mm², mounting type: NS 35/7,5, NS 35/15, color: blue.
Features
- Same shape as UT standard terminal blocks
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 8.2 mm | |
| Number of terminals | 1 | |
| Rated surge voltage | 6 kV | |
| AWG cross-section | AWG 24 to 8 | |
| Version | N-disconnect terminal | |
| Rated current | 41 A | |
| Cable cross-section | 0.2-10 mm² | |
| Rated Voltage | 400 V | |
| Colour | gray | |
| Length | 55 mm | |
| Height | 47.5 mm | |
| Degree of soiling | 3 | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
