3216066 | Phoenix Contact

Through terminal block, screw connection, 0.2-4.0 mm², 32 A, 6 kV, brown, 3216066

Order No.: 60P5209
EAN: 4046356075572
MPN:
3216066
UK 5-TWIN BN
Series: UK

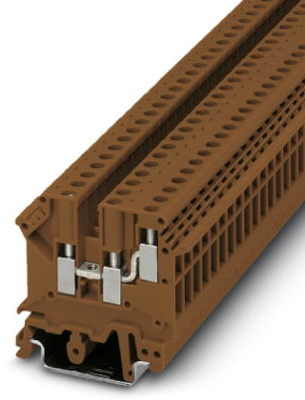

3216066 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
3.6771 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
3.68 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.6771 €

Feed-through terminal block, 3216066, Phoenix Contact

1-level terminal block with double connection on one side, cross section: 0.2 - 4 mm², AWG: 24 - 12, width: 6.2 mm, color: Brown.

Technical specifications
Filter Property Value
Rated Voltage 500 V
Number of terminals 1
Height 47 mm
Colour brown
Degree of soiling 3
Rated current 32 A
Cable cross-section 0.2-4.0 mm²
Version through terminal block
Connection screw connection
AWG cross-section AWG 24 to 12
Width 6.2 mm
Rated surge voltage 6 kV
Length 50.5 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
