3214025 | Phoenix Contact

N-disconnect terminal, push-in connection, 0.5-16 mm², 68 A, 6 kV, blue, 3214025

Order No.: 60P3471
EAN: 4046356702249
MPN:
3214025
PTN 16/S
Series: PTN
3214025 Phoenix Contact Series Terminals

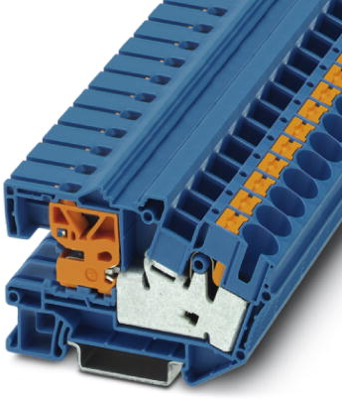

Image may differ
Unit Price (€ / pc.)
4.0222 € *
Available: 48 pcs.
Available in 5 Days: 5,418 pcs. - if ordered today
Total Price:
4.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.0222 €

N disconnect terminal block, 3214025, Phoenix Contact

N disconnect terminal block, Assembly instructions: For secure fastening of the neutral busbar, supports must be set at the beginning and end of each terminal strip as well as every 20 cm on longer terminal strips., rated voltage: 500 V, nominal current: 68 A, Push-in connection, 1 level, Rated cross section: 16 mm², cross section: 0.5 mm²  - 16 mm², mounting type: NS 35/7,5, NS 35/15, color: blue.

Features

  • Fast and reliable neutral conductor disconnection
  • Testing facility in the function shaft and in the 2.3 mm test opening
  • Double function shaft for simple potential distribution
  • Secure latching of slide in end positions
Technical specifications
Filter Property Value
Rated Voltage 500 V
Number of terminals 1
Height 51.1 mm
Colour blue
Degree of soiling 3
Rated current 68 A
Cable cross-section 0.5-16 mm²
Version N-disconnect terminal
Connection push-in connection
AWG cross-section AWG 24 to 4
Width 10.2 mm
Rated surge voltage 6 kV
Length 77.7 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
