3213946 | Phoenix Contact
Protective conductor terminal, push-in connection, 0.14-4.0 mm², 24 A, 6 kV, gray, 3213946
Unit Price (€ / pc.)
4.0698 € *
Available: 10 pcs.
Available in 10 days: 35,409 pcs. - if ordered today
Total Price:
4.07 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0698 €
10 pcs.
3.7366 €
50 pcs.
3.4034 €
100 pcs.
3.0702 €
*incl. VAT plus shipping costs
Subject to prior sale

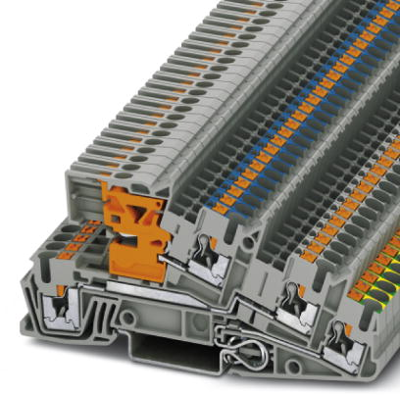

Installation ground terminal block, 3213946, Phoenix Contact
Installation ground terminal block, Assembly instructions: For secure fastening of the neutral busbar, supports must be set at the beginning and end of each terminal strip as well as every 20 cm on longer terminal strips., rated voltage: 400 V, nominal current: 24 A, Push-in connection, 1st, 2nd and 3rd level, Rated cross section: 4 mm², cross section: 0.14 mm² - 4 mm², Push-in connection, mounting type: NS 35/7,5, NS 35/15, color: gray.
Features
- Compatible with all installation terminal blocks
- Each terminal point can be clearly labeled and easily recognized in every terminal block mounting position
- Double function shafts on all levels
- Compact design tailored to distribution boards
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 5.2 mm | |
| Length | 101 mm | |
| Version | protective conductor terminal | |
| Cable cross-section | 0.14-4.0 mm² | |
| Number of terminals | 2 | |
| Height | 50.5 mm | |
| Colour | gray | |
| Rated surge voltage | 6 kV | |
| Rated current | 24 A | |
| AWG cross-section | AWG 26 to 12 | |
| Connection | push-in connection | |
| Rated Voltage | 400 V | |
| Degree of soiling | 3 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
