3213945 | Phoenix Contact

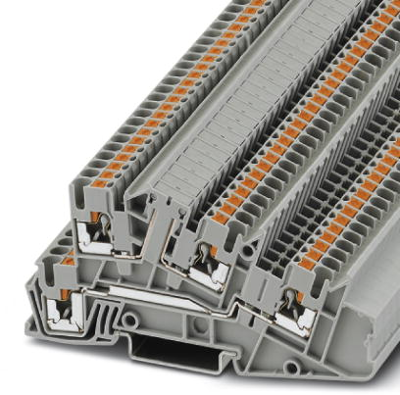

Installation terminal block, push-in connection, 0.14-4.0 mm², 24 A, 6 kV, gray, 3213945
Unit Price (€ / pc.)
3.8913 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
3.89 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8913 €
10 pcs.
3.5700 €
50 pcs.
3.2368 €
100 pcs.
2.9155 €
*incl. VAT plus shipping costs
Subject to prior sale
Installation level terminal block, 3213945, Phoenix Contact
Installation level terminal block, with built-in feed-through connector, rated voltage: 400 V, nominal current: 24 A, Push-in connection, 1st and 2nd level, Rated cross section: 4 mm², cross section: 0.14 mm² - 4 mm², Push-in connection, Rated cross section: 1.5 mm², mounting type: NS 35/7,5, NS 35/15, color: gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | installation terminal block | |
| Height | 50.5 mm | |
| Length | 101 mm | |
| AWG cross-section | AWG 26 to 12 | |
| Colour | gray | |
| Degree of soiling | 3 | |
| Number of terminals | 2 | |
| Width | 5.2 mm | |
| Rated surge voltage | 6 kV | |
| Cable cross-section | 0.14-4.0 mm² | |
| Connection | push-in connection | |
| Rated Voltage | 400 V | |
| Rated current | 24 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
