3213140 | Phoenix Contact
High current terminal, screw connection, 16-95 mm², 1 pole, 192 A, 8 kV, gray, 3213140
Unit Price (€ / pc.)
33.4628 € *
Available in 10 days: 12,128 pcs. - if ordered today
Total Price:
33.46 € *
Price list
Quantity
Price per unit*
1 pcs.
33.4628 €
5 pcs.
31.1304 €
10 pcs.
28.3220 €
25 pcs.
25.4779 €
*incl. VAT plus shipping costs
Subject to prior sale

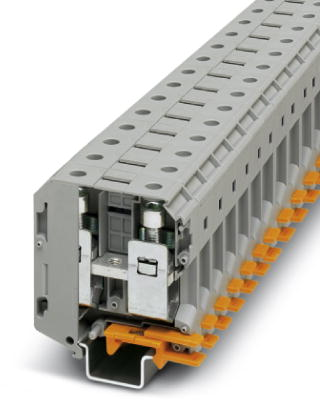

High current terminal block, 3213140, Phoenix Contact
High-current terminal block, rated voltage: 1000 V, nominal current: 192 A, connection method: Screw connection, Rated cross section: 70 mm², cross section: 16 mm² - 95 mm², mounting type: NS 35/7,5, NS 35/15, NS 35/15-2,3, NS 32, color: gray.
Features
- Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
- Tested for railway applications
- Low contact resistance of the contact surface due to ribbing
- Screw locking by means of spring-loaded elements in the clamping part
Technical specifications
| Version | high current terminal | |
| Number of terminals | 2 | |
| Pin number | 1 pole | |
| Cable cross-section | 16-95 mm² | |
| AWG cross-section | AWG 4 to 3/0 | |
| Rated surge voltage | 8 kV | |
| Rated current | 192 A | |
| Rated Voltage | 1000 V | |
| Degree of soiling | 3 | |
| Length | 70.5 mm | |
| Width | 20.3 mm | |
| Height | 78.3 mm | |
| Connection | screw connection | |
| Colour | gray |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
