3213137 | Phoenix Contact
Bolt terminal, bolt connection, 2.5-70 mm², 1 pole, 192 A, 8 kV, gray, 3213137
Unit Price (€ / pc.)
16.9813 € *
Available: 5 pcs.
Available in 5 Days: 3,131 pcs. - if ordered today
Total Price:
16.98 € *
Price list
Quantity
Price per unit*
1 pcs.
16.9813 €
10 pcs.
15.2796 €
100 pcs.
12.9948 €
*incl. VAT plus shipping costs
Subject to prior sale

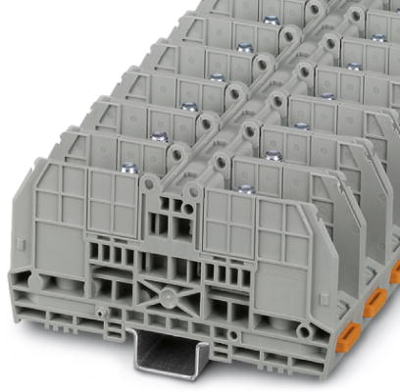

Bolt connection terminal block, 3213137, Phoenix Contact
Bolt connection terminal block, Nominal voltage: 1000 V, Nominal current: 192 A, Connection method: Bolt connection, 1 level, Rated cross section: 70 mm², Mounting type: NS 35/7,5, NS 35/15, Color: gray
Features
- Mounting on standard DIN rails or directly in control boxes
- Optional snap-on shock protection
- Potential distribution with connection rails
- Tested for railway applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | Bolt terminal | |
| Number of terminals | 2 | |
| Pin number | 1 pole | |
| Cable cross-section | 2.5-70 mm² | |
| Rated surge voltage | 8 kV | |
| Rated current | 192 A | |
| Rated Voltage | 1000 V | |
| Degree of soiling | 3 | |

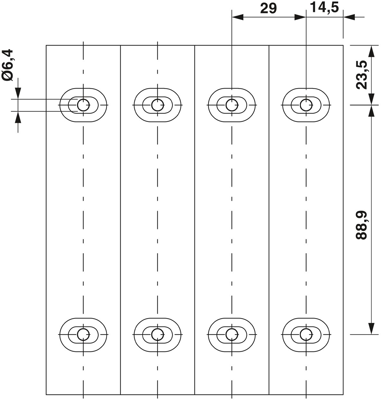

| Length | 136 mm | |
| Width | 29 mm | |
| Height | 67 mm | |
| Connection | bolt connection | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
