3212302 | Phoenix Contact

Protective conductor terminal, push-in connection, 0.5-10 mm², 2 pole, 6 kV, yellow/green, 3212302

Order No.: 60P3469
EAN: 4046356623193
MPN:
3212302
PTMED 6-CT/1P-PE
Series: PTMED
3212302 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
11.1741 € *
Available in 10 days: 215 pcs. - if ordered today
Total Price:
11.17 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
11.1741 €

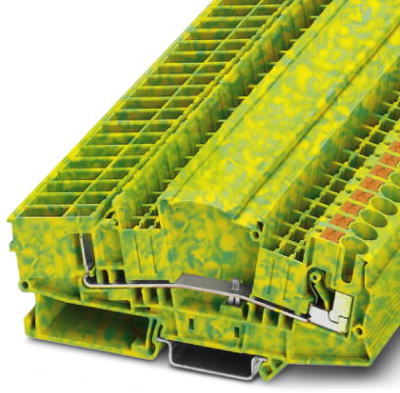

Ground modular terminal block, 3212302, Phoenix Contact

Ground modular terminal block, connection method: Push-in connection, 1 level, cross section: 0.5 mm² - 10 mm² , color: green-yellow.

Technical specifications
Filter Property Value
Pin number 2 pole
Degree of soiling 3
Colour yellow/green
Version protective conductor terminal
Rated surge voltage 6 kV
Length 114.9 mm
Connection push-in connection
Cable cross-section 0.5-10 mm²
Number of terminals 2
Height 49.6 mm
AWG cross-section AWG 20 to 10
Width 8.2 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
