3212112 | Phoenix Contact
Component terminal block, push-in connection, 0.2-6.0 mm², 1.5 A, 8 kV, gray, 3212112
Unit Price (€ / pc.)
3.8318 € *
Available: 0 pcs.
Available in 10 days: 2,650 pcs.
Leadtime: 2 Weeks **

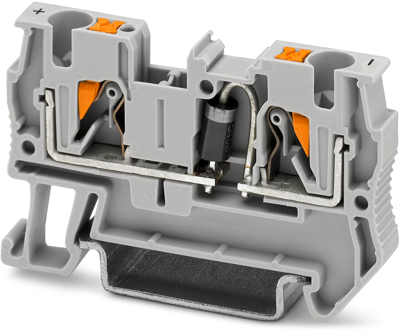

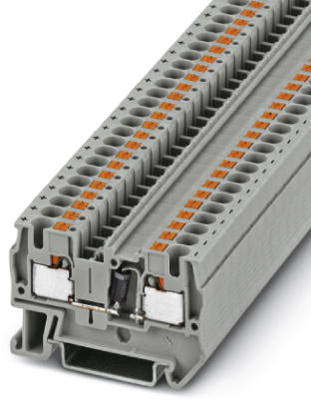

Component terminal block, 3212112, Phoenix Contact
Component terminal block, The max. current is determined by the diode. Installed: diode 1N 5408, reverse voltage: 1000 V, maximum continuous current: 1.5 A, with integrated diode 1N5408, rated voltage: 800 V, nominal current: 1.5 A, 1 level, connection method: Push-in connection, Rated cross section: 1 mm², cross section: 0.2 mm² - 6 mm², mounting: NS 35/7,5, NS 35/15, color: gray.
Features
- The compact design and front connection enable wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- All terminal blocks provide an additional test connection
Technical specifications
| Colour | gray | |
| AWG cross-section | AWG 24 to 10 | |
| Rated current | 1.5 A | |
| Width | 6.2 mm | |
| Height | 44 mm | |
| Length | 56 mm | |
| Cable cross-section | 0.2-6.0 mm² | |
| Number of terminals | 2 | |
| Version | component terminal block | |
| Connection | push-in connection | |
| Degree of soiling | 3 | |
| Rated Voltage | 800 V | |
| Rated surge voltage | 8 kV |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
