3212076 | Phoenix Contact

High current terminal, plug-in connection, 2.5-35 mm², 125 A, 8 kV, black, 3212076

Order No.: 60P3483
EAN: 4046356869812
MPN:
3212076
PTPOWER 35-3L/N/FE-F
Series: PTPOWER

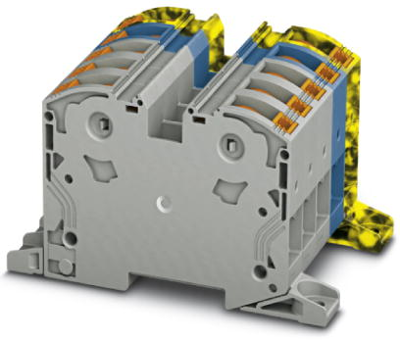

3212076 Phoenix Contact Series Terminals Image 1

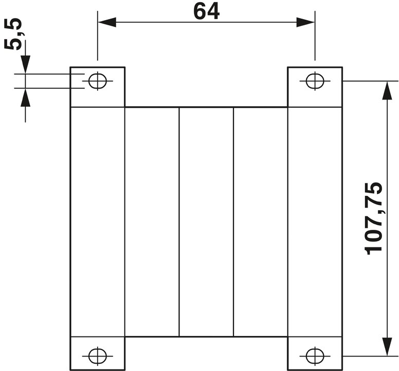

3212076 Phoenix Contact Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
26.6322 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
26.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
26.6322 €

High current terminal block, 3212076, Phoenix Contact

High-current terminal block, Blocked, rated voltage: 1000 V, nominal current: 125 A, connection method: Power-Turn connection, 1 level, cross section: 2.5 mm²  - 35 mm², mounting type: direct screw connection, color: gray/blue/black-yellow.

Features

  • The compact design and front connection enable wiring in a confined space
  • Easy and tool-free wiring of conductors with ferrules or solid conductors
  • All terminal blocks provide an additional test connection
  • Quick and easy connection is now also possible for large conductors with the high-current terminal block
Technical specifications
Number of terminals 2
Connection plug-in connection
Rated Voltage 1000 V
Colour black
Height 68.3 mm
AWG cross-section AWG 12 to 2
Rated current 125 A
Rated surge voltage 8 kV
Version high current terminal
Width 80 mm
Degree of soiling 3
Length 120.2 mm
Cable cross-section 2.5-35 mm²
Logistics
Customs tariff number 85369010
Country of origin PL
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
