3211841 | Phoenix Contact
Protective conductor double level terminal, push-in connection, 0.2-6.0 mm², 8 kV, yellow/green, 3211841
Unit Price (€ / pc.)
7.0448 € *
Available in 5 Days: 296 pcs. - if ordered today

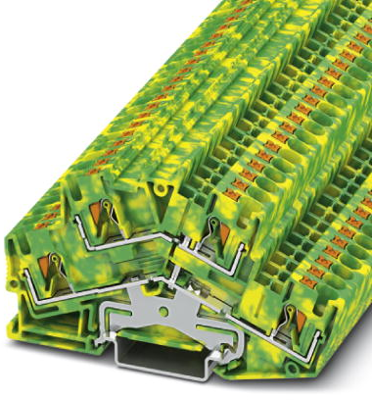

Protective conductor double level terminal block, 3211841, Phoenix Contact
Protective conductor double-level terminal block, number of connections: 4, connection method: Push-in connection, 1st and 2nd level, cross section: 0.2 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.
Features
- The compact design and front connection enable wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- All terminal blocks provide an additional test connection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Connection | push-in connection | |
| AWG cross-section | AWG 24 to 10 | |
| Length | 96 mm | |
| Height | 54.5 mm | |
| Rated surge voltage | 8 kV | |
| Width | 6.2 mm | |
| Colour | yellow/green | |
| Version | protective conductor double level terminal | |
| Cable cross-section | 0.2-6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
