3211780 | Phoenix Contact
Protective conductor terminal, push-in connection, 0.2-6.0 mm², 3 pole, 8 kV, yellow/green, 3211780
Unit Price (€ / pc.)
3.689 € *
Available: 25 pcs.
Available in 5 Days: 9,234 pcs. - if ordered today

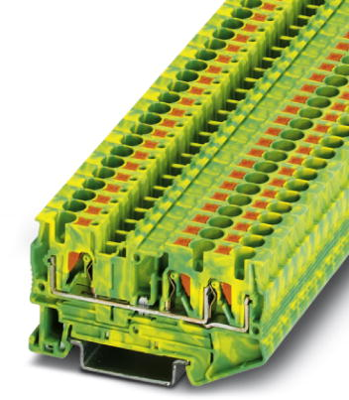

Ground modular terminal block, 3211780, Phoenix Contact
Ground modular terminal block, number of connections: 3, connection method: Push-in connection, 1 level, cross section: 0.2 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.
Features
- The compact design and front connection enable wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- All terminal blocks provide an additional test connection
- Tested for railway applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24 to 10 | |
| Rated surge voltage | 8 kV | |
| Degree of soiling | 3 | |
| Pin number | 3 pole | |
| Length | 66.5 mm | |
| Colour | yellow/green | |
| Cable cross-section | 0.2-6.0 mm² | |
| Connection | push-in connection | |
| Number of terminals | 3 | |
| Width | 6.2 mm | |
| Height | 36.5 mm | |
| Version | protective conductor terminal |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
