3210596 | Phoenix Contact

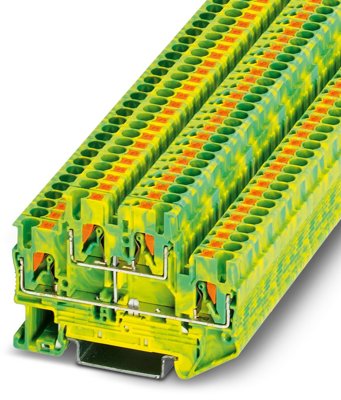

Protective conductor double level terminal, push-in connection, 0.14-4.0 mm², 4 pole, 6 kV, yellow/green, 3210596
Unit Price (€ / pc.)
7.5684 € *
Available: 145 pcs.
Available in 5 Days: 20,450 pcs. - if ordered today
Total Price:
7.57 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5684 €
10 pcs.
6.9734 €
50 pcs.
6.3546 €
100 pcs.
5.7001 €
*incl. VAT plus shipping costs
Subject to prior sale
Protective conductor double-level terminal block, 3210596, Phoenix Contact
Protective conductor double-level terminal block, Number of connections: 4, Connection method: Push-in connection, 1st and 2nd level, Rated cross section: 2.5 mm², Cross section: 0.14 mm² - 4 mm², Mounting type: NS 35/7,5, NS 35/15, Color: green-yellow
Features
- In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
- The compact design and front connection enable wiring in a confined space
- The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
- Tested for railway applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Number of terminals | 4 | |
| AWG cross-section | AWG 26 to 12 | |
| Colour | yellow/green | |
| Connection | push-in connection | |
| Cable cross-section | 0.14-4.0 mm² | |
| Width | 5.2 mm | |
| Height | 47.5 mm | |
| Rated surge voltage | 6 kV | |
| Version | protective conductor double level terminal | |
| Pin number | 4 pole | |
| Length | 68 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
