3210406 | Phoenix Contact
Disconnect terminal, push-in connection, 0.14-4.0 mm², 16 A, 6 kV, gray, 3210406
Unit Price (€ / pc.)
8.8893 € *
Standard delivery time from the manufacturer is: 4 Weeks

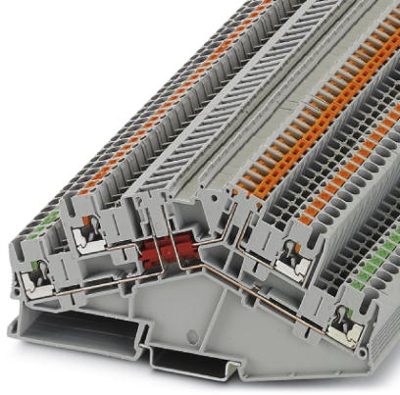

Disconnect terminal block, 3210406, Phoenix Contact
Disconnect terminal block, Double level with angled contour, one disconnect knife, and one disconnect point, rated voltage: 400 V, nominal current: 16 A, 1st and 2nd level, connection method: Push-in connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, color: gray.
Features
- The compact design and front connection enable wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- All terminal blocks provide an additional test connection
- Convenient separation of circuits, thanks to lever-type disconnect knife
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 400 V | |
| Version | disconnect terminal | |
| Rated current | 16 A | |
| Rated surge voltage | 6 kV | |
| Colour | gray | |
| Connection | push-in connection | |
| Degree of soiling | 3 | |
| Cable cross-section | 0.14-4.0 mm² | |
| Length | 127.5 mm | |
| AWG cross-section | AWG 26 to 12 | |
| Height | 63.1 mm | |
| Width | 5.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
