3210286 | Phoenix Contact

Disconnect terminal, push-in connection, 0.14-4.0 mm², 16 A, 6 kV, gray, 3210286

Order No.: 60P3661
EAN: 4046356862769
MPN:
3210286
PTT 2,5-2TG
Series: PTT
3210286 Phoenix Contact Series Terminals

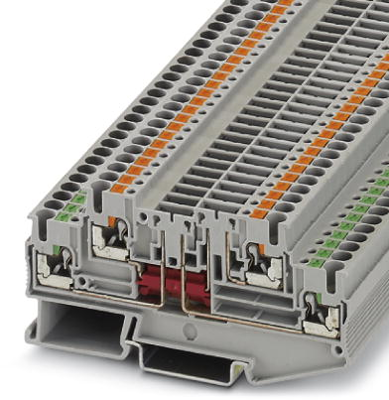

Image may differ
Unit Price (€ / pc.)
7.1400 € *
Available in 10 days: 48 pcs. - if ordered today
Total Price:
7.14 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.1400 €

Disconnect terminal block, 3210286, Phoenix Contact

Disconnect terminal block, rated voltage: 400 V, nominal current: 16 A, 1st and 2nd level, connection method: Push-in connection, Rated cross section: 2.5 mm², cross section: 0.14 mm²  - 4 mm², mounting: NS 35/7,5, NS 35/15, color: gray.

Features

  • The compact design and front connection enable wiring in a confined space
  • Easy and tool-free wiring of conductors with ferrules or solid conductors
  • All terminal blocks provide an additional test connection
Technical specifications
Filter Property Value
Degree of soiling 3
Colour gray
Version disconnect terminal
Rated surge voltage 6 kV
Length 92.4 mm
Connection push-in connection
Rated Voltage 400 V
Cable cross-section 0.14-4.0 mm²
Number of terminals 2
Rated current 16 A
Height 45.8 mm
AWG cross-section AWG 26 to 12
Width 5.2 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
