3210004 | Phoenix Contact

Plug, push-in connection, 0.14-4.0 mm², 15 pole, 24 A, 6 kV, gray, 3210004

Order No.: 60P2227
EAN: 4046356501965
MPN:
3210004
PP-H 2,5/15
Series: PP-H
Phoenix Contact
3210004 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
12.9115 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
12.91 € *
Price list
Quantity
Price per unit*
1 pcs.
12.9115 €
10 pcs.
11.6144 €
100 pcs.
9.8770 €
*incl. VAT plus shipping costs
**Subject to prior sale

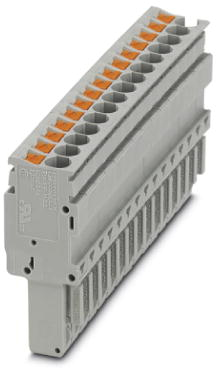

Plug, 3210004, Phoenix Contact

Plug, rated voltage: 500 V, nominal current: 24 A, connection method: Push-in connection, 1 level, Rated cross section: 2.5 mm², cross section: 0.14 mm²  - 4 mm², color: gray.

Features

  • Large-surface labeling option
  • The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
  • Tested for railway applications
Technical specifications
Connection push-in connection
Number of terminals 15
Version plug
AWG cross-section AWG 26 to 12
Rated Voltage 500 V
Rated surge voltage 6 kV
Width 78 mm
Colour gray
Height 40.2 mm
Length 15.8 mm
Cable cross-section 0.14-4.0 mm²
Rated current 24 A
Pin number 15 pole
Degree of soiling 3
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
