3209621 | Phoenix Contact

Protective conductor double level terminal, push-in connection, 0.14-4.0 mm², 6 kV, gray, 3209621

Order No.: 60P3768
EAN: 4046356842693
MPN:
3209621
PTTBS 2,5-PE/L
Series: PTTBS
3209621 Phoenix Contact Series Terminals

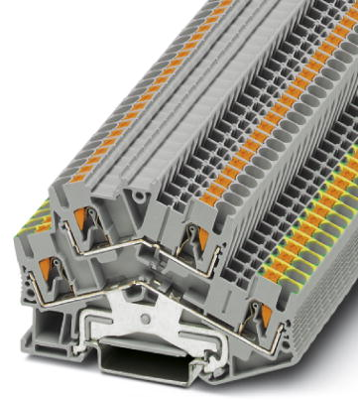

Image may differ
Unit Price (€ / pc.)
4.0698 € *
Available in 10 days: 1,000 pcs. - if ordered today
Total Price:
4.07 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.0698 €

Protective conductor double level terminal block, 3209621, Phoenix Contact

Protective conductor double-level terminal block, rated voltage: 500 V, nominal current: 24 A, connection method: Push-in connection, 1st and 2nd level, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Features

  • The compact design and front connection enable wiring in a confined space
  • Easy and tool-free wiring of conductors with ferrules or solid conductors
  • All terminal blocks provide an additional test connection
Technical specifications
Connection push-in connection
Colour gray
Height 54.5 mm
AWG cross-section AWG 26 to 12
Rated surge voltage 6 kV
Version protective conductor double level terminal
Width 5.2 mm
Degree of soiling 3
Length 78 mm
Cable cross-section 0.14-4.0 mm²
Logistics
Customs tariff number 85369010
Country of origin CN
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
