3209620 | Phoenix Contact
Protective conductor double level terminal, push-in connection, 0.14-4.0 mm², 6 kV, yellow/green, 3209620
Unit Price (€ / pc.)
5.7834 € *
Standard delivery time from the manufacturer is: 2 Weeks

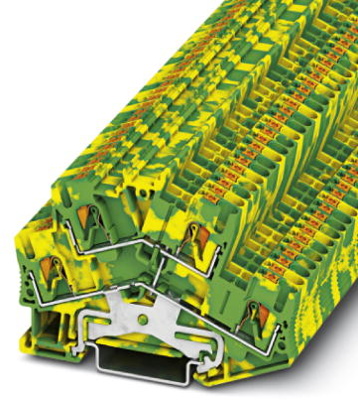

Protective conductor double level terminal block, 3209620, Phoenix Contact
Protective conductor double-level terminal block, number of connections: 4, connection method: Push-in connection, 1 level, cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.
Features
- The compact design and front connection enable wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- All terminal blocks provide an additional test connection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26 to 12 | |
| Degree of soiling | 3 | |
| Colour | yellow/green | |
| Connection | push-in connection | |
| Length | 78 mm | |
| Cable cross-section | 0.14-4.0 mm² | |
| Rated surge voltage | 6 kV | |
| Width | 5.2 mm | |
| Height | 55 mm | |
| Version | protective conductor double level terminal |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
