3209141 | Phoenix Contact

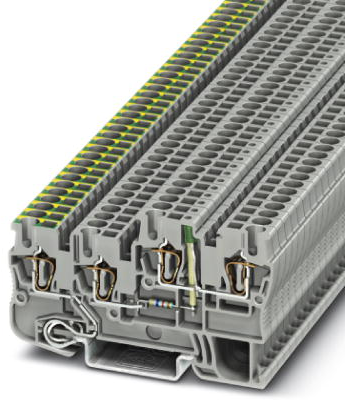

Protective conductor terminal, spring balancer connection, 0.08-4.0 mm², 4 pole, 18 A, 4 kV, gray, 3209141

Order No.: 60P4840
EAN: 4046356143509
MPN:
3209141
STIO 2,5/3-PE/B/L-LA24GN/O-M
Series: STIO
3209141 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
9.0321 € *
Available in 10 days: 50 pcs. - if ordered today
Total Price:
451.61 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
9.0321 €

Installation ground terminal block, 3209141, Phoenix Contact

Installation ground terminal block, rated voltage: 24 V, nominal current: 18 A, connection method: Spring-cage connection, Rated cross section: 2.5 mm², cross section: 0.08 mm²  - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Features

  • Three-conductor output terminal block of the same shape with PE connection in the lower level for wiring actuators
  • Power terminal blocks can be located at any point on the terminal strip for supply or extension purposes
  • Easy bridging and potential distribution using the patented plug-in bridges from the CLIPLINE complete system
  • Potential is supplied via the STIO-IN power terminal blocks
  • The upper level is for signal wiring, whereas the two lower levels are used to distribute the positive and negative potential
Technical specifications
Version protective conductor terminal
Number of terminals 4
Pin number 4 pole
Cable cross-section 0.08-4.0 mm²
AWG cross-section AWG 28 to 12
Rated surge voltage 4 kV
Rated current 18 A
Rated Voltage 24 V
Degree of soiling 3
Length 75 mm
Width 5.2 mm
Height 44.5 mm
Connection spring balancer connection
Colour gray
Logistics
Country of origin TR
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Hexahydromethylphthalic anhydride
SVHC free No
