3208745 | Phoenix Contact
Protective conductor terminal, push-in connection, 0.5-16 mm², 3 pole, 8 kV, yellow/green, 3208745
Unit Price (€ / pc.)
8.7822 € *
Available: 51 pcs.
Available in 5 Days: 2,895 pcs. - if ordered today
Total Price:
8.78 € *
Price list
Quantity
Price per unit*
1 pcs.
8.7822 €
10 pcs.
8.0801 €
50 pcs.
7.3542 €
100 pcs.
6.6164 €
*incl. VAT plus shipping costs
Subject to prior sale

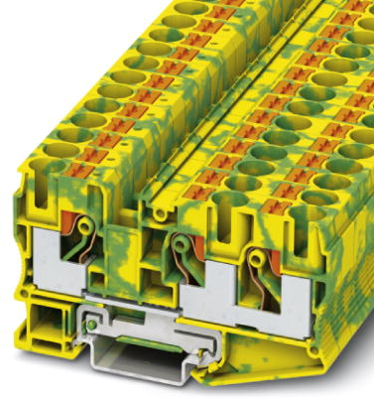

Ground modular terminal block, 3208745, Phoenix Contact
Ground modular terminal block, number of connections: 3, connection method: Push-in connection, 1 level, Rated cross section: 10 mm², cross section: 0.5 mm² - 16 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.
Features
- The compact design and front connection enable wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- Tested for railway applications
- All terminal blocks provide an additional test connection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20 to 6 | |
| Length | 88.9 mm | |
| Number of terminals | 3 | |
| Height | 50.5 mm | |
| Colour | yellow/green | |
| Rated surge voltage | 8 kV | |
| Width | 10.2 mm | |
| Degree of soiling | 3 | |
| Connection | push-in connection | |
| Pin number | 3 pole | |
| Version | protective conductor terminal | |
| Cable cross-section | 0.5-16 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
