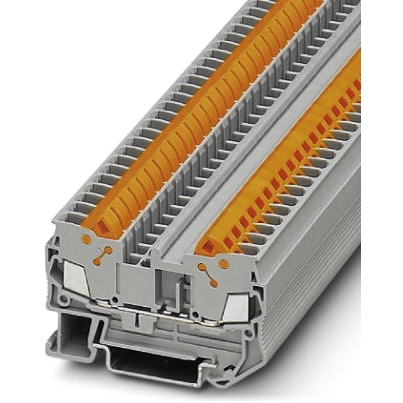

3206416 | Phoenix Contact

Through terminal block, quick connection, 0.5-2.5 mm², 2 pole, 24 A, 8 kV, gray, 3206416

Order No.: 09H9124
EAN: 4017918976033
MPN:
3206416
QTC 2,5
Series: QTC
3206416 Phoenix Contact Series Terminals
Image may differ

Discontinued

Unit Price (€ / pc.)
2.2491 € *
Available: 28 pcs.
Available in 10 days: 42,699 pcs. - if ordered today
Total Price:
2.25 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2491 €
10 pcs.
2.0706 €
50 pcs.
1.8802 €
100 pcs.
1.6898 €
*incl. VAT plus shipping costs
Subject to prior sale

Feed-through terminal block, 3206416, Phoenix Contact

Feed-through terminal block, Nominal voltage: 800 V, Nominal current: 24 A, Connection method: Quick connection, 1 level, Rated cross section: 2.5 mm², Cross section: 0.5 mm² - 2.5 mm², Mounting type: NS 35/7,5, NS 35/15, Color: gray

Features

  • Compact design
  • Tested for railway applications
Technical specifications
Filter Property Value
Version through terminal block
Number of terminals 2
Pin number 2 pole
Cable cross-section 0.5-2.5 mm²
AWG cross-section AWG 20 to 14
Rated surge voltage 8 kV
Rated current 24 A
Rated Voltage 800 V
Degree of soiling 3
Length 62.6 mm
Width 6.2 mm
Height 39.3 mm
Connection quick connection
Colour gray
Logistics
Property Value
Country of origin CN
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
