3206241 | Phoenix Contact
Component terminal block, IDC connection, 0.25-1.5 mm², 2 pole, 17.5 A, 6 kV, gray, 3206241
Unit Price (€ / pc.)
7.0686 € *
Available in 5 Days: 17 pcs. - if ordered today

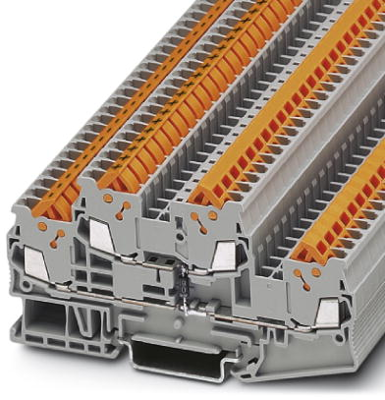

Component terminal block, 3206241, Phoenix Contact
Component terminal block, with integrated diode, rated voltage: 500 V, nominal current: 17.5 A, connection method: Quick connection, 1st and 2nd level, Rated cross section: 1.5 mm², cross section: 0.25 mm² - 1.5 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.
Features
- Ground terminal blocks of the same shape are available
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Rated current | 17.5 A | |
| AWG cross-section | AWG 24 to 16 | |
| Rated surge voltage | 6 kV | |
| Length | 99.6 mm | |
| Width | 5.2 mm | |
| Version | component terminal block | |
| Connection | IDC connection | |
| Pin number | 2 pole | |
| Rated Voltage | 500 V | |
| Height | 49.9 mm | |
| Colour | gray | |
| Cable cross-section | 0.25-1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
