3205129 | Phoenix Contact

Double level terminal, quick connection, 0.25-1.5 mm², 4 pole, 17.5 A, 6 kV, blue, 3205129

Order No.: 60P3959
EAN: 4017918933104
MPN:
3205129
QTTCB 1,5 BU
Series: QTTCB
3205129 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
3.6414 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
3.64 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.6414 €

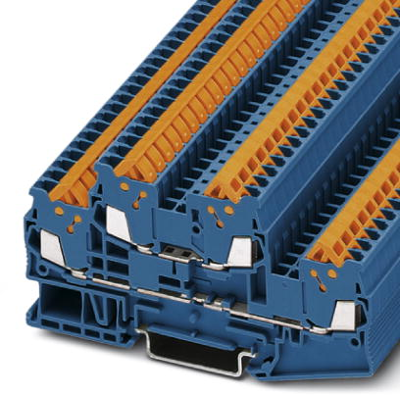

Double level terminal block, 3205129, Phoenix Contact

Double-level terminal block, rated voltage: 500 V, nominal current: 17.5 A, connection method: Quick connection, 1st and 2nd level, Rated cross section: 1.5 mm², cross section: 0.25 mm² - 1. 5 mm², mounting type: NS 35/7,5, NS 35/15, color: blue.

Features

  • Ground terminal blocks of the same shape are available
  • Tested for railway applications
Technical specifications
Version double level terminal
Number of terminals 4
Pin number 4 pole
Cable cross-section 0.25-1.5 mm²
AWG cross-section AWG 24 to 16
Rated surge voltage 6 kV
Rated current 17.5 A
Rated Voltage 500 V
Degree of soiling 3
Length 99.6 mm
Width 5.2 mm
Height 49.9 mm
Connection quick connection
Colour blue
Logistics
Customs tariff number 85369010
Country of origin CN
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
