3205022 | Phoenix Contact
Through terminal block, quick connection, 0.25-1.5 mm², 17.5 A, 8 kV, blue, 3205022
Unit Price (€ / pc.)
1.8038 € *
Available in 5 Days: 21,866 pcs. - if ordered today
Total Price:
1.80 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8038 €
10 pcs.
1.6702 €
50 pcs.
1.5550 €
100 pcs.
1.4547 €
*incl. VAT plus shipping costs
Subject to prior sale

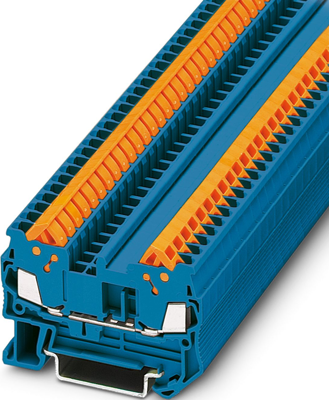

Feed-through terminal block, 3205022, Phoenix Contact
Feed-through terminal block, nom. voltage: 800 V, nominal current: 17.5 A, number of connections: 2, connection method: Quick connection, Rated cross section: 1.5 mm², 1 level, cross section: 0.25 mm² - 1.5 mm², mounting type: NS 35/7,5, NS 35/15, color: blue.
Features
- Compact design
- Tested for railway applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24-16 | |
| Length | 58.8 mm | |
| Rated current | 17.5 A | |
| Height | 46.8 mm | |
| Colour | blue | |
| Rated surge voltage | 8 kV | |
| Width | 5.2 mm | |
| Degree of soiling | 3 | |
| Connection | quick connection | |
| Version | through terminal block | |
| Rated Voltage | 800 V | |
| Cable cross-section | 0.25-1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
