3205019 | Phoenix Contact
Quick connection terminal, quick connection, 0.25-1.5 mm², 2 pole, 17.5 A, 8 kV, gray, 3205019
Unit Price (€ / pc.)
1.9516 € *
Available: 3 pcs.
Available in 10 days: 58,016 pcs. - if ordered today
Total Price:
1.95 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9516 €
10 pcs.
1.7969 €
50 pcs.
1.6303 €
100 pcs.
1.4756 €
*incl. VAT plus shipping costs
Subject to prior sale

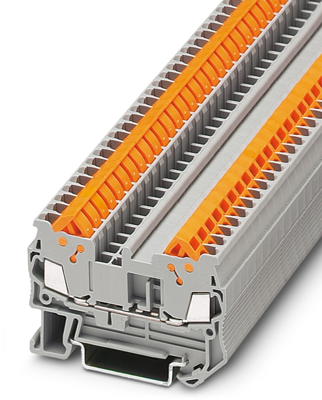

Feed-through terminal block, 3205019, Phoenix Contact
Feed-through terminal block, Nominal voltage: 800 V, Nominal current: 17.5 A, Connection method: Quick connection, 1 level, Rated cross section: 1.5 mm², Cross section: 0.25 mm² - 1.5 mm², Mounting type: NS 35/7,5, NS 35/15, Color: gray
Features
- Compact design
- Tested for railway applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | quick connection terminal | |
| Number of terminals | 2 | |
| Pin number | 2 pole | |
| Cable cross-section | 0.25-1.5 mm² | |
| AWG cross-section | AWG 24 to 16 | |
| Rated surge voltage | 8 kV | |
| Rated current | 17.5 A | |
| Rated Voltage | 800 V | |
| Degree of soiling | 3 | |
| Length | 58.8 mm | |
| Width | 5.2 mm | |
| Height | 39.3 mm | |
| Connection | quick connection | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
