3100091 | Phoenix Contact

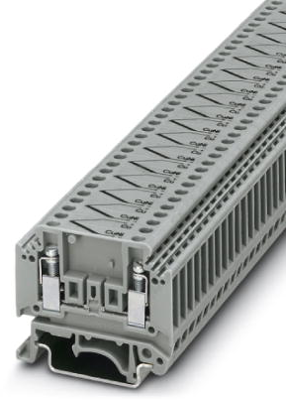

Thermoelectric voltage terminal block pair, 3100091, Phoenix Contact

Thermoelectric voltage terminal block pair, TC type R, rated voltage: 400 V, nominal current: 1 A, connection method: Screw connection, 1 level, cross section: 0.2 mm²  - 4 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray.

Features

• These special terminal blocks are used to extend thermocouple equalizing conductors in corresponding measuring circuits
• The equalizing conductors are made from materials which, up to temperatures of 200°C, have the same thermal characteristics as the corresponding thermocouples
