3100020 | Phoenix Contact
Through terminal block, screw connection, 0.2-4.0 mm², 2 pole, 16 A, 6 kV, gray, 3100020
Unit Price (€ / pc.)
4.046 € *
Available in 5 Days: 46 pcs. - if ordered today

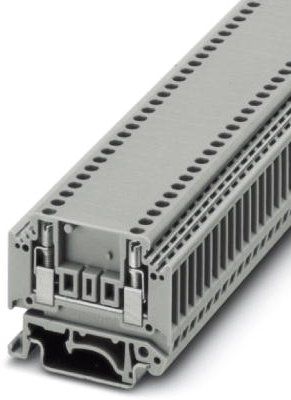

Feed-through terminal block, 3100020, Phoenix Contact
Feed-through terminal block, With test socket screws for insertion of Test plug, rated voltage: 400 V, nominal current: 16 A, connection method: Screw connection, 1 level, Rated cross section: 2.5 mm², cross section: 0.2 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray.
Features
- High current carrying capacity of up to 16 A
- Space-saving design
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | through terminal block | |
| Number of terminals | 2 | |
| Pin number | 2 pole | |
| Cable cross-section | 0.2-4.0 mm² | |
| AWG cross-section | AWG 24 to 12 | |
| Rated surge voltage | 6 kV | |
| Rated current | 16 A | |
| Rated Voltage | 400 V | |
| Degree of soiling | 3 | |
| Length | 46.2 mm | |
| Width | 5.2 mm | |
| Height | 39.9 mm | |
| Connection | screw connection | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
