3076039 | Phoenix Contact

Protective conductor terminal, screw connection, 0.2-10 mm², 38 A, 6 kV, gray, 3076039

Order No.: 60P5866
EAN: 4046356817615
MPN:
3076039
UTI 6-PE/L/NT
Series: UTI
3076039 Phoenix Contact Series Terminals

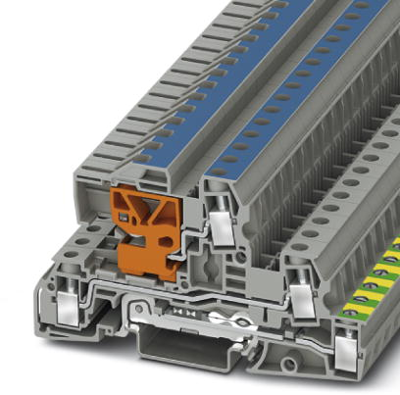

Image may differ
Unit Price (€ / pc.)
5.1408 € *
Available: 40 pcs.
Available in 10 days: 1,014 pcs. - if ordered today
Total Price:
5.14 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.1408 €

Installation ground terminal block, 3076039, Phoenix Contact

Installation ground terminal block, Assembly instruction: In order to securely fix the neutral busbar in place, support brackets must be placed at the beginning and end of each terminal strip as well as every 20 cm on longer terminal strips. The corresponding support brackets can be found at phoenixcontact.net/products, rated voltage: 400 V, nominal current: 38 A, Screw connection, Rated cross section: 6 mm², cross section: 0.2 mm²  - 10 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Features

  • The installation terminal block features a particularly low-profile design and is suitable for wiring in flat installation distributors
  • The asymmetrical arrangement of the terminal blocks on the DIN rail enables the neutral busbar to be routed past the terminal blocks
Technical specifications
Filter Property Value
Height 51.5 mm
Version protective conductor terminal
Colour gray
Width 8.2 mm
Rated current 38 A
Degree of soiling 3
Rated Voltage 400 V
AWG cross-section AWG 24 to 8
Connection screw connection
Rated surge voltage 6 kV
Cable cross-section 0.2-10 mm²
Length 95 mm
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
