3073296 | Phoenix Contact

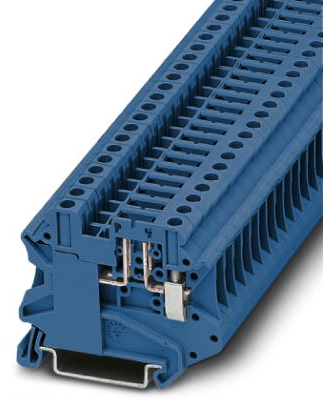

Disconnect terminal, screw connection, 0.14-6.0 mm², 20 A, 6 kV, blue, 3073296
Unit Price (€ / pc.)
3.8199 € *
Available in 10 days: 1,150 pcs. - if ordered today
Total Price:
3.82 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8199 €
10 pcs.
3.5224 €
50 pcs.
3.2011 €
100 pcs.
2.8798 €
*incl. VAT plus shipping costs
Subject to prior sale
Disconnect terminal block, 3073296, Phoenix Contact
Disconnect terminal block, Current and voltage are determined by the plug used., With test socket screws for insertion of Test plug, rated voltage: 500 V, nominal current: 20 A, connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 6 mm², mounting: NS 35/7,5, NS 35/15, color: blue.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 20 A | |
| Version | disconnect terminal | |
| Cable cross-section | 0.14-6.0 mm² | |
| Height | 47.5 mm | |
| Rated surge voltage | 6 kV | |
| Number of terminals | 2 | |
| Degree of soiling | 3 | |
| Length | 57.8 mm | |
| AWG cross-section | AWG 26 to 10 | |
| Rated Voltage | 500 V | |
| Colour | blue | |
| Width | 6.2 mm | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
