3073283 | Phoenix Contact
Disconnect terminal, screw connection, 0.14-6.0 mm², 20 A, 6 kV, blue, 3073283
Unit Price (€ / pc.)
3.8199 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
3.82 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8199 €
10 pcs.
3.5224 €
50 pcs.
3.2011 €
100 pcs.
2.8798 €
*incl. VAT plus shipping costs
Subject to prior sale

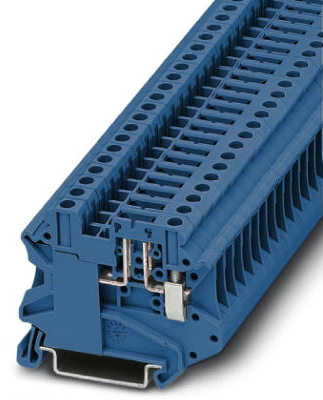

Disconnect terminal block, 3073283, Phoenix Contact
Disconnect terminal block, Current and voltage are determined by the plug used., rated voltage: 500 V, nominal current: 20 A, connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 6 mm², mounting: NS 35/7,5, NS 35/15, color: blue.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Width | 6.2 mm | |
| Colour | blue | |
| Rated surge voltage | 6 kV | |
| Number of terminals | 2 | |
| AWG cross-section | AWG 26 to 10 | |
| Length | 57.8 mm | |
| Degree of soiling | 3 | |
| Rated Voltage | 500 V | |
| Version | disconnect terminal | |
| Height | 47.5 mm | |
| Rated current | 20 A | |
| Cable cross-section | 0.14-6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
