3069951 | Phoenix Contact

Test plug, screw connection, 0.2-2.5 mm², 10 pole, 20 A, gray, 3069951

Order No.: 60P1270
EAN: 4055626279251
MPN:
3069951
FTP-3/10S
Series: FTP

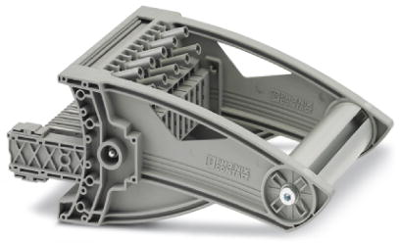

3069951 Phoenix Contact Series Terminals Image 1

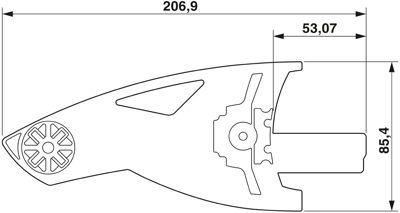

3069951 Phoenix Contact Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
381.1332 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
381.13 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
381.1332 €

Test plug, 3069951, Phoenix Contact

Test plug, rated voltage: 400 V, nominal current: 20 A, connection method: Cable lug connection, Rated cross section: 2.5 mm², color: gray.

Features

  • Space saving, thanks to offset test socket arrangement
  • Cost-effective, thanks to the tailored, modular design and use of standardized CLIPLINE complete accessories
  • Easy and time saving, thanks to functional grouping of switching operations
  • Maximum safety with leading and automatic transformer short circuit
Technical specifications
Filter Property Value
Rated Voltage 400 V
Pin number 10 pole
Colour gray
Rated current 20 A
Cable cross-section 0.2-2.5 mm²
Version test plug
Connection screw connection
AWG cross-section AWG 20 to 14
Width 114.1 mm
Length 86 mm
Logistics
Property Value
Customs tariff number 85366990
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
