3069950 | Phoenix Contact

Test plug, screw connection, 0.2-2.5 mm², 4 pole, 20 A, gray, 3069950

Order No.: 60P1281
EAN: 4055626272689
MPN:
3069950
FTP-3/4S
Series: FTP

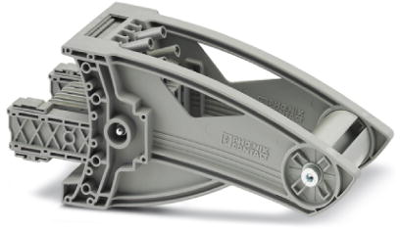

3069950 Phoenix Contact Series Terminals Image 1

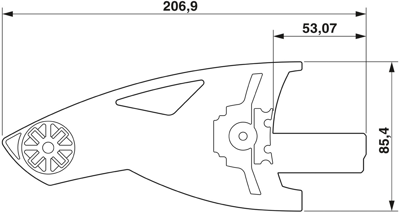

3069950 Phoenix Contact Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
190.7808 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
190.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
190.7808 €

Test plug, 3069950, Phoenix Contact

Test plug, rated voltage: 400 V, nominal current: 20 A, Rated cross section: 2.5 mm², color: gray.

Features

  • Space saving, thanks to offset test socket arrangement
  • Cost-effective, thanks to the tailored, modular design and use of standardized CLIPLINE complete accessories
  • Easy and time saving, thanks to functional grouping of switching operations
  • Maximum safety with leading and automatic transformer short circuit
Technical specifications
Colour gray
AWG cross-section AWG 20 to 14
Rated current 20 A
Width 65.2 mm
Length 86 mm
Cable cross-section 0.2-2.5 mm²
Pin number 4 pole
Version test plug
Connection screw connection
Rated Voltage 400 V
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
