3061952 | Phoenix Contact

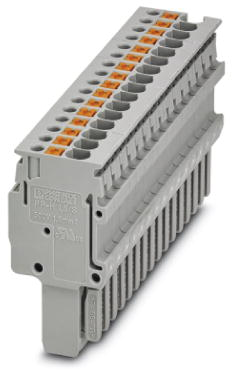

Plug, push-in connection, 0.14-1.5 mm², 16 pole, 17.5 A, 6 kV, gray, 3061952
Unit Price (€ / pc.)
14.5299 € *
Available: 0 pcs.
Available in 10 days: 170 pcs.
Leadtime: 2 Weeks **
Total Price:
14.53 € *
Price list
Quantity
Price per unit*
1 pcs.
14.5299 €
10 pcs.
13.3637 €
50 pcs.
12.1618 €
100 pcs.
10.9480 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plug, 3061952, Phoenix Contact
Plug, rated voltage: 500 V, nominal current: 17.5 A, connection method: Push-in connection, 1 level, Rated cross section: 1.5 mm², cross section: 0.14 mm² - 1.5 mm², color: gray.
Features
- Large-surface labeling option
- The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
Technical specifications
| Version | Stecker | |
| Number of terminals | 16 | |
| Pin number | 16-polig | |
| Cable cross-section | 0,14-1,5 mm² | |
| AWG cross-section | AWG 26 bis 14 | |
| Rated surge voltage | 6 kV | |
| Rated current | 17.5 A | |
| Rated Voltage | 500 V | |
| Degree of soiling | 3 | |
| Length | 16.5 mm | |
| Width | 56 mm | |
| Height | 31.3 mm | |
| Connection | Push-in-Anschluss | |
| Colour | grau |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
